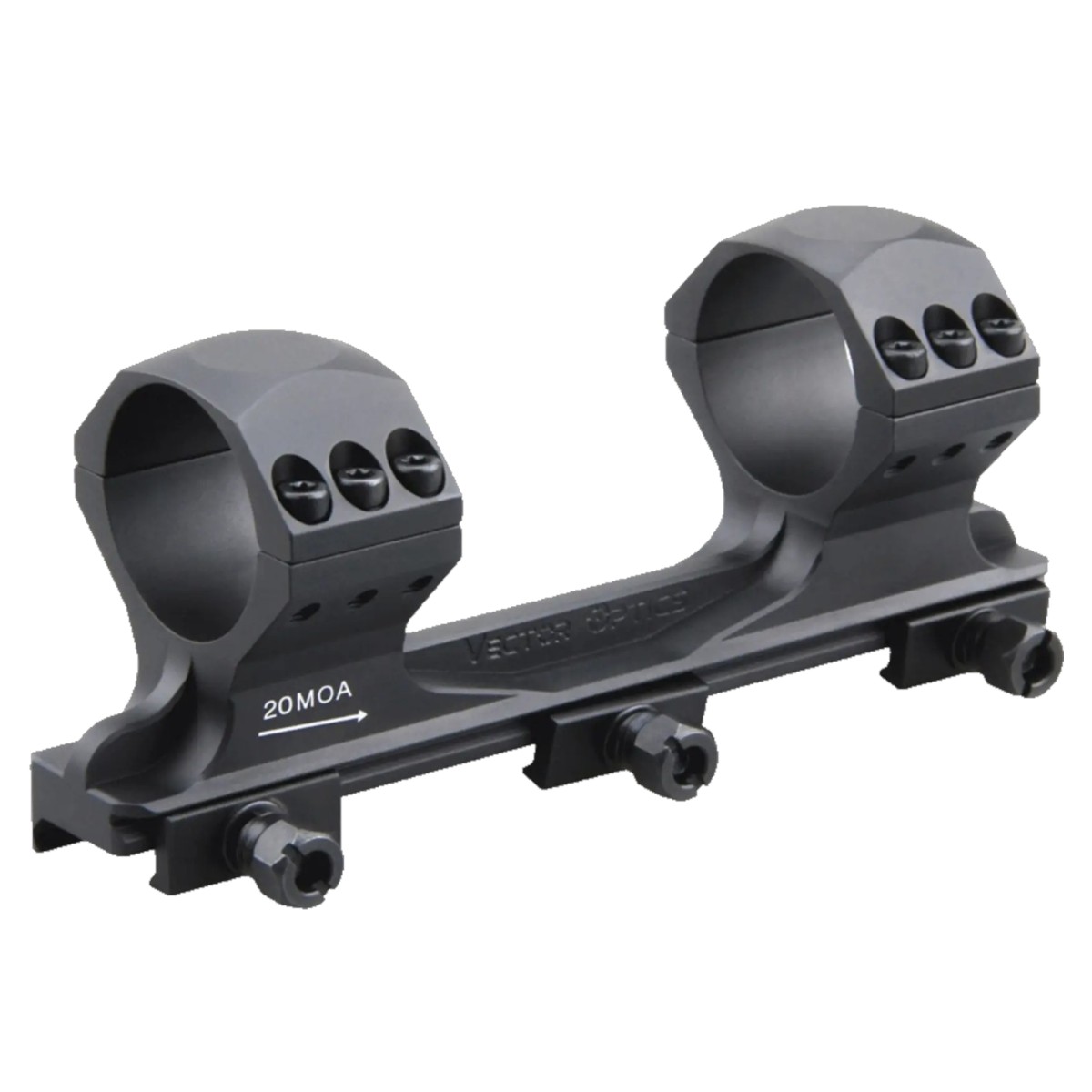

30mm X-Accu One Piece 20MOA Med Picatinny Mount – XASR-3011

Elevate your precision shooting setup with the Vector Optics X-Accu One-Piece Scope Mount, designed for 30mm tube riflescopes and demanding long-range applications. Its integrated 20MOA (6MIL) cant provides additional elevation adjustment to help maximise your scope’s internal adjustment range.

Constructed from aerospace-grade 6061-T6 aluminum alloy, the mount offers a strong and durable platform. The hard anodized matte black finish helps protect against wear and corrosion, while the one-piece CNC-machined design provides rigidity and precise alignment.

The 21mm Picatinny base features three steel cross bolts for secure mounting, while anti-retreat rings help prevent movement during recoil. Each ring is secured with six Torx screws for enhanced clamping force and stability.

With a 32mm (1.2″) central height, the mount is suitable for scopes with objective lenses up to 50mm. Designed for tactical, competitive, and long-range shooting setups, the X-Accu mount provides reliable scope support and consistent alignment.

Key Features

• 30mm Diameter Rings: Designed for compatible 30mm tube riflescopes.
• 20MOA (6MIL) Cant: Provides additional elevation adjustment for extended-range shooting.
• High-Profile Centre Height: Suitable for scopes with objective lenses up to 50mm.
• One-Piece CNC Machined Design: Provides rigidity and precise alignment.
• Hard Anodized Finish: Durable matte black coating helps resist wear and corrosion.
• Tri-Bolt Picatinny Base: Three steel cross bolts provide secure mounting.
• Anti-Retreat Rings: Helps prevent movement under recoil.
• Six Torx Screws per Ring: Provides enhanced clamping force.
• Included T15 Torx Wrench: Supports secure installation and adjustment.

Specifications

• Tube Diameter: 30mm
• MOA Cant: 20MOA / 6MIL
• Central Height: 32mm / 1.2in
• Ring Width: 45.5mm / 1.8in
• Ring Length: 26mm / 1.0in
• Gap Between Rings: 70mm / 2.8in
• Mount Length: 154mm / 6.1in
• Overall Height: 59mm / 2.3in
• Weight: 230g / 8.5oz
• Material: Aerospace-grade 6061-T6 aluminum alloy
• Mounting Base: 21mm Picatinny
• Finish: Hard anodized, matte black
• Screws per Ring: 6
• Included: T15 Torx wrench, retail packaging
• Recommended Torque: 18 in-lbs for ring screws; 25 in-lbs (max 45) for cross bolts
